Color Reference Chart

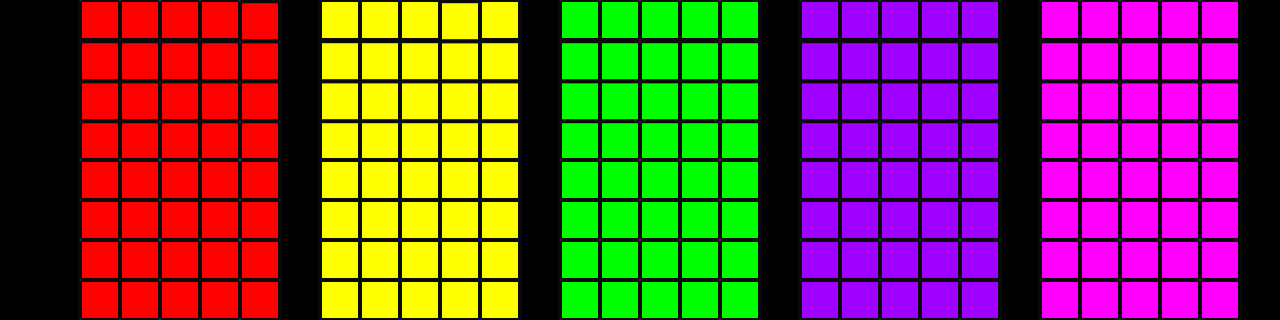

Most displays color code the blood glucose value or the background based on the below color chart. The values listed are the default values, but these can be changed in the Display Options settings.

Red	≤ 60 mg/dL \| 3.3 mmol/L
Yellow	61 - 70 mg/dL \| 3.4 - 3.8 mmol/L
Green	71 - 180 mg/dL \| 3.9 - 10.0 mmol/L
Purple	181 - 250 mg/dL \| 10.1 - 13.9 mmol/L
Magenta	> 250 mg/dL \| 14.0 mmol/L

If your blood glucose data is outdated by your selected minutes in the Display Options color range selection, the primary display color will be blue.
